Musaffah Palace · MEP, Infrastructure & Waterproofing
At Musaffah Palace, Costro delivered combined MEP and civil infrastructure at Musaffah Palace, followed by a 400 m² combo-system waterproofing package to the Majlis roof, several disciplines coordinated under one accountable scope.
Project Facts
Private estate — client details withheld for confidentialityDelivered Across Multiple Disciplines
The infrastructure works spanned MEP and civil trades together, with civil works verified by the project consultant.
Sleeve Pipework
Sleeve pipework and service penetrations installed to drawing.
Manholes & Excavation
Manholes with excavation and backfill, verified by the project consultant.
Cable Pulling
Cable pulling and containment as part of the electrical package.
Electrical Rooms
Electrical rooms and associated builders’ work.
Distribution Boards
Distribution boards installed and terminated within the MEP scope.
Fire-Fighting
Fire-fighting infrastructure coordinated with the wider services.
Eight Stages, One Watertight Roof
A 400 m² combo waterproofing system executed to the Majlis roof, documented stage by stage and carrying a 10-year warranty on this package.

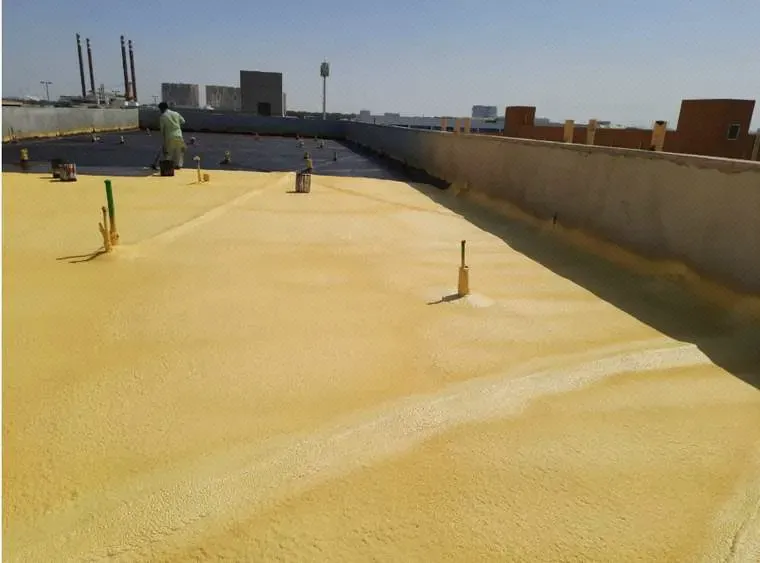

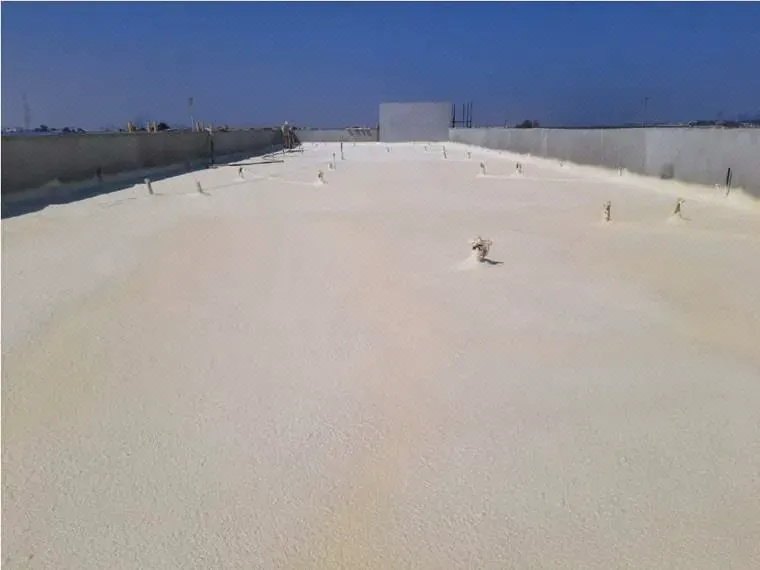

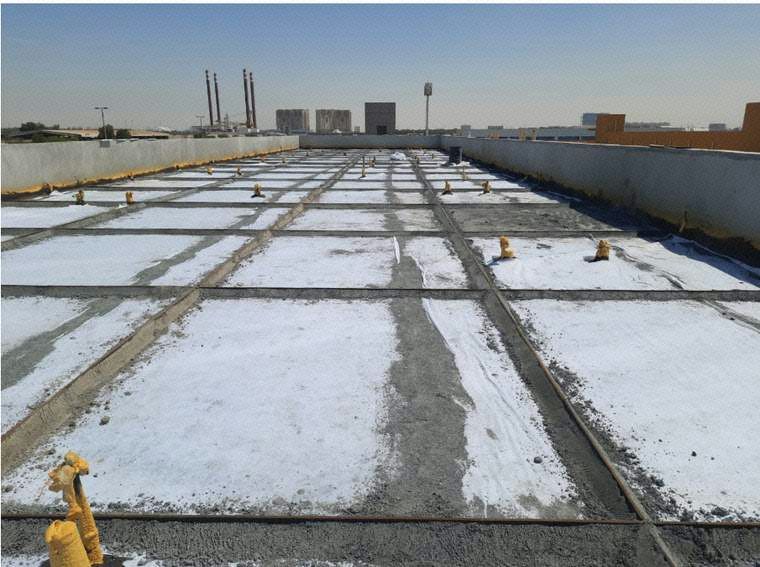

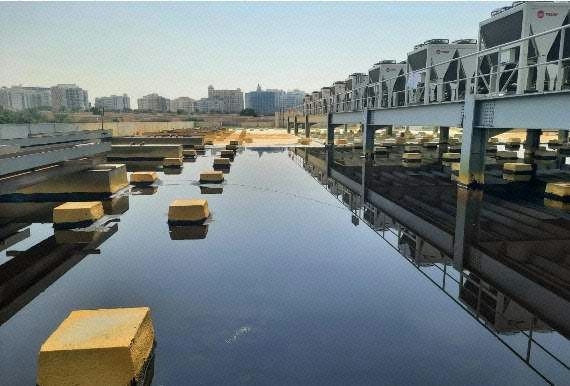

The system comprises spray-applied polyurethane foam at 30–40 mm thickness (40–50 kg/m³ density), verified by a 48-hour water ponding test, then protected with a UV-resistant coating and a geotextile separation layer. Ridge formation is built up with bituminous impregnated boards and cement-sand mortar to establish falls.

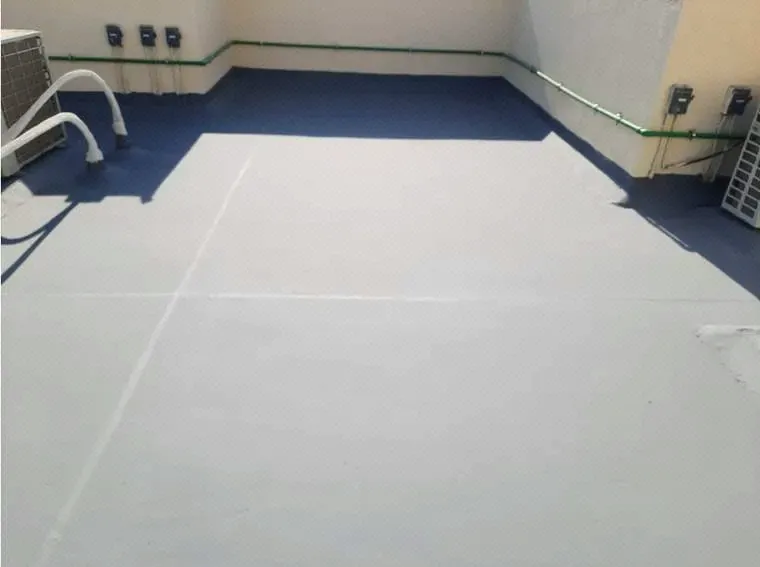

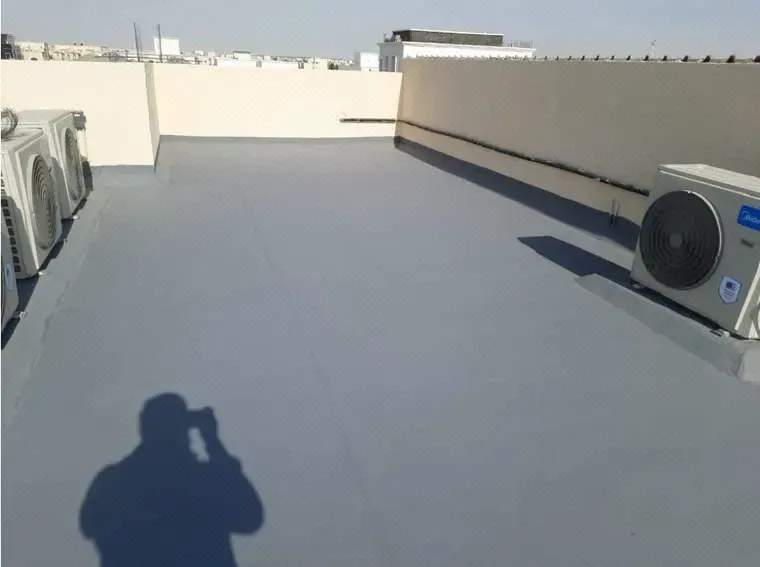

A protective screed of C-25 concrete with polypropylene fibres is laid at 80 mm average thickness, all joints sealed with heavy-duty sealant over backing rod, and angle fillets formed at parapets, ducts and upstands. A cementitious waterproof coating with acrylic top coat completes the system as the final protection layer.
Project Detail
Scope of Work
- MEP installation
- Civil infrastructure works
- Waterproofing, 400 m² majlis roof combo system
Technical Details
- 400 m² majlis roof
Materials & Specifications
- Combination waterproofing system (majlis roof)
Engineering Approach
MEP, civil and waterproofing packages were coordinated as one programme so that infrastructure works and the majlis roof system could progress without sequencing conflicts.
Quality & Inspection
- 10-year waterproofing warranty issued on this package
Results & Outcome
MEP infrastructure, civil works and a 400 m² combination-system waterproofing package to the majlis roof delivered as one coordinated programme, closed out with a 10-year waterproofing warranty on the roofing package.
Gallery
